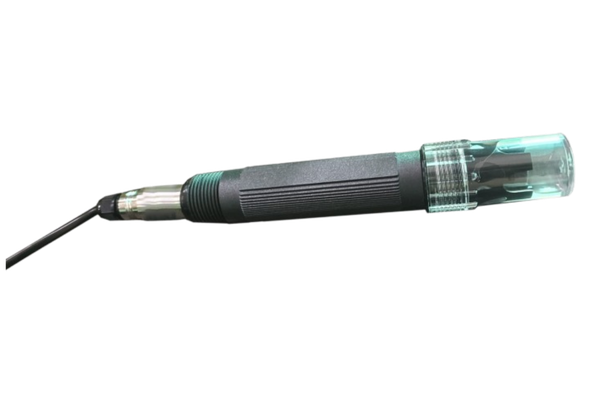

Agasthya 2021 Series Ammonia Nitrogen Sensor Model BI1380-S-T

Ammonia Nitrogen Sensor is designed to measure real-time monitoring of ammonia nitrogen and total nitrogen in various application such as environmental monitoring, wastewater treatment & industrial application. It offers high sensitivity, low maintenance.

  • Ammonia-Nitrogen (NH4-N) and Total Nitrogen (TN)
  • Ammonium Ion sensor is solid membrane ion selective electrodes, used to test ammonium ions in water, which can be fast, simple, and accurate
  • The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy
  • Fast response, round bulbs, large sensitive area, stable signal
  • PP material, works at 0-60 DegC
  • The lead is made up of pure copper, which can directly realize remote transmission, which is more accurate and stable than lead signal of copper zinc alloy

Technical Specification

General

  • Measurement Range
    : 0 – 1000mg/L
  • Measurement Principal
    : Ion selective sensor

Physical

  • Sensor Material
    : PP+PVC
  • Cable Length
    : Standard 10m cable, Customize length
    available
  • Installation Thread
    : NPT3/4”

Environmental

  • Temperature Range
    : 0 – 50 degC
  • Maximum Pressure
    : 3 Bar
  • Temperature Compensation
    : NTC10K

Performance

  • Accuracy
    : ±2.5%
  • Depth Rating
    : Max 60
  • IP Rating
    : IP68
  • Calibration
    : Standard liquid calibration
