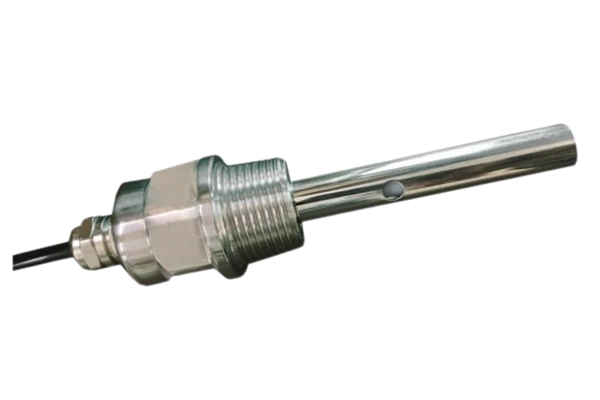

Agasthya 2021 Series Conductivity Sensor Model BI1330-S-T-K0.1

Conductivity/TDS Sensor designed for accuracy and resilience, they provide reliable data across diverse applications, from wastewater treatment to process control, ensuring optimal performance and effective monitoring.

  • Measuring specific Conductivity/TDS of aqueous solutions is becoming increasingly important for determining impurities in water
  • Conductivity sensor works on measurement principle of electrode method (2-electrode type)
  • Conductivity sensor is designed in such a way that can handle these measurements even in extreme conditions
  • Conductivity Sensor ensures optimal performance in monitoring conductivity level
  • Easy to install for various online monitoring systems

Technical Specification

General

  • Measurement Range
    : 0-2 mS
  • Cell Constant
    : 0.1
  • Electrode material
    : 2 Electrode probe

Physical

  • Sensor Material
    : SS316L
  • Cable Length
    : Standard 5m cable, Customize length available

Environmental

  • Temperature Range
    : (-)10 – 150°C
  • Temperature Compensation
    : Pt100

Performance

  • Process Connection
    : 3/4″ NPT
  • IP Rating
    : IP68
  • Effluent
  • Groundwater
  • Pharma Application
  • Chemical Industry
  • Petroleum Application
