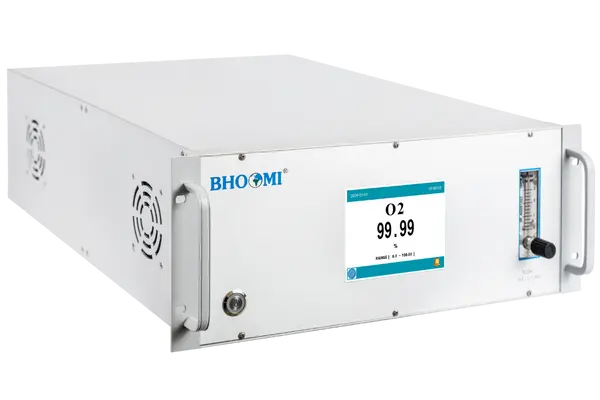

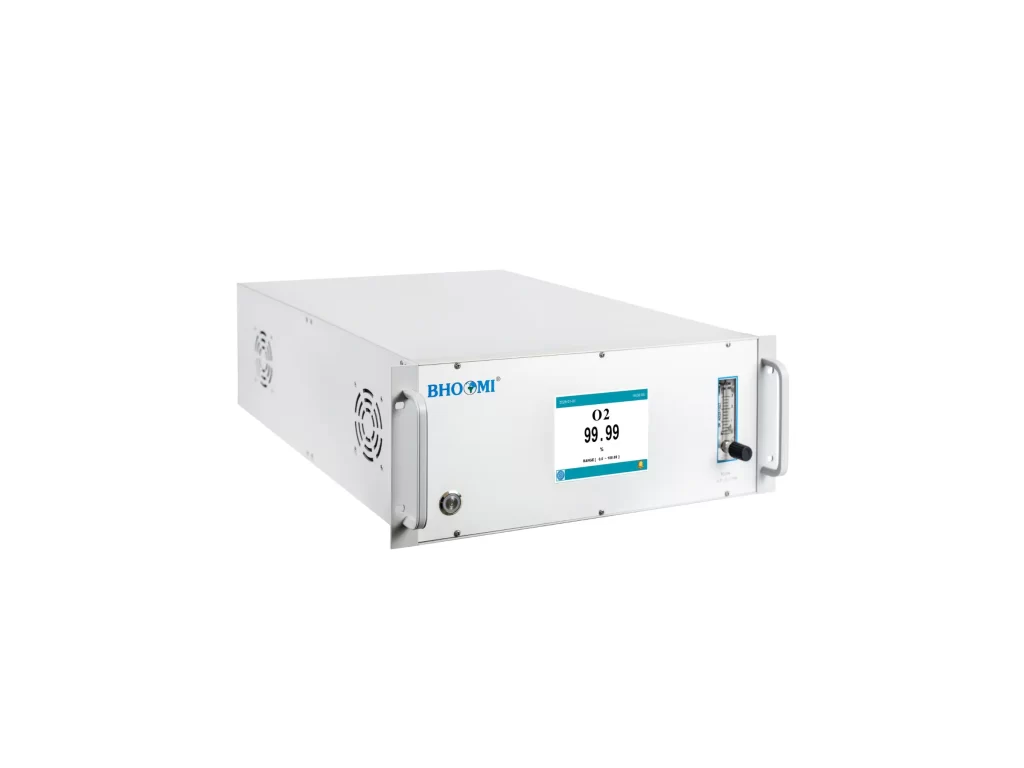

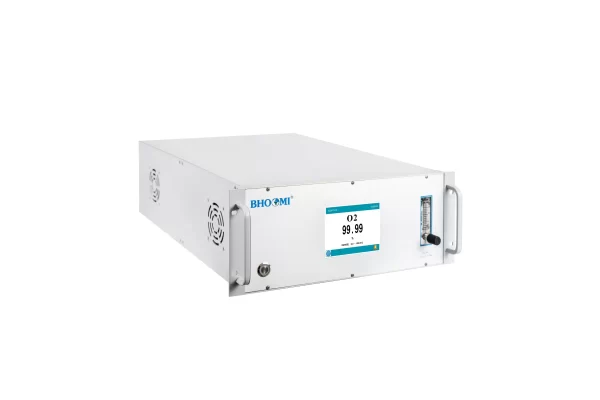

Agasthya 2013 Series Oxygen Purity Analyzer BI 410 ( % – Paramagnetic Technology)

Agasthya 2013 Series Oxygen Purity Analyzer BI 410 ( % – Paramagnetic Technology)

Agasthya 2013 Series BI 410 Purity Oxygen Analyzer is designed for Oxygen measurement in various application with low drift, precision, accuracy and stable oxygen readings and long life Paramagnetic sensor makes the analyzer worth the investments for long term use.

Easy to maintain and service from user point of view. LCD & LED touchscreen display available. Analog 4-20 mA output with 2 nos. potential free relay contact. It has 4 different mounting configurations, Wall, Panel, Rack & Tabletop.

Agasthya 2013 Series BI 410 Purity Oxygen Analyzer 1
  • 32-Bit Cortex-M3 ARM Processor
  • Long life Paramagnetic O2 sensor
  • RS 485, supports MODBUS protocol
  • PTFE tubing and corrosion-resistant components for internal sample health
  • Flow meter for flow regulation
  • Method of Detection
  • Paramagnetic sensor for O2
  • Range & Resolution
  • 0-100% scalable, Resolution 0.01%
    95-100%, Resolution 0.01%
  • Accuracy & Repeatability
  • ± 1% of FS
  • Drift
  • < 2% of full scale per month
  • Response Time (T-90)
  • ≤30 seconds
  • Display
  • Touch Screen
    • LCD
    • LED
  • Power
  • 80 to 230 VAC 50 Hz
  • Power Consumption
  • 8 Watts
  • Digital Output
  • RS485 with MODBUS Protocol
  • Analog Output
  • 4-20 mA (max load resistance upto 500 Ω)
  • Relay Output
  • 2 nos. of potential free contacts
  • Humidity
  • 5-95% RH
  • Ambient Temperature Range
  • 4 to 50ºC
  • Flow Meter
  • 0.1-1 LPM
  • Enclosure
  • Wall, Panel, Rack & Table Top
  • Sample Connection
  • 1/4 inch S.S. Connection
  • Area Classification
  • General Purpose
  • Oxygen Generator Plant
  • Hospital
  • Gas Manufacturer
  • Medical Oxygen
  • Steel Industries
  • Pharma
  • Oxygen Plant Manufacturer
