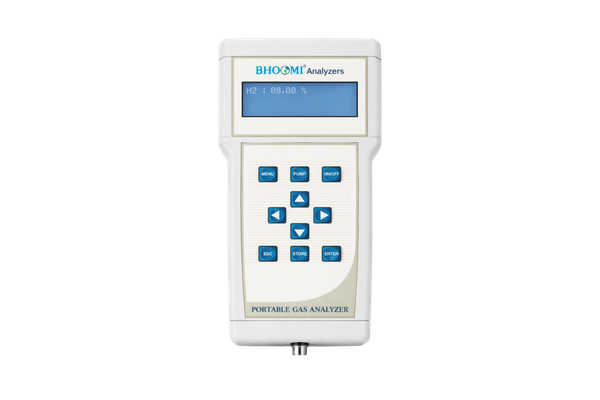

Agasthya 2013 Series Portable Hydrogen Purity Analyzer BI 620
Agasthya 2013 Series Portable Hydrogen Purity Analyzer BI 620
Agasthya 2013 Series Portable Hydrogen Purity Analyzer BI 620 measures Hydrogen in percent level in process gas. For H2 measurement Thermal Conductivity technology is used.
It has long-life, eight-hour battery charge. It can be started up and ready to measure within minutes. It is supported by automatic zero calibration and continuous system diagnostics to maintain excellent analytical performance throughout its operation. Robust and lightweight, is easy to transport and use. Easy to maintain and service from user point of view.
- 32-Bit Cortex-M3 ARM Processor
- Long life Thermal Conductivity H2 sensor
- 200 set of data storage
- USB for Charging & Data communication
- Powerful windows software for analyzer data communication
- 8 Hours of battery operating time
- Method of Detection
- Thermal Conductivity sensor for H2
- Range Available
- 0-100% scalable
- Resolution
- 0.01%
- Accuracy & Repeatability
- ± 1% of FS
- Drift
- 0.5% per year
- Response Time (T-90)
- ≤ 10 seconds
- Display
- LCD (Handheld Version)
- Power
- 80-230 VAC, 50 Hz, Adaptor
- Battery
- Lithium-ion rechargeable batteries
- Communication
- USB
- Data Storage
- Up to 200 set of data
- Enclosure
- Handheld
- Sample Connection
- 1/4 inch S.S. Connection
- Operating Temperature
- 4 to 50°C
- Dimension
- 215 (L) x 120 (B) x 40 (H) mm
- Area Classification
- General Purpose
- Hydrogen Cooled Generators
- Synchronous Converters
- Oil Refinery
- Chemical
