Multiparameter Controller

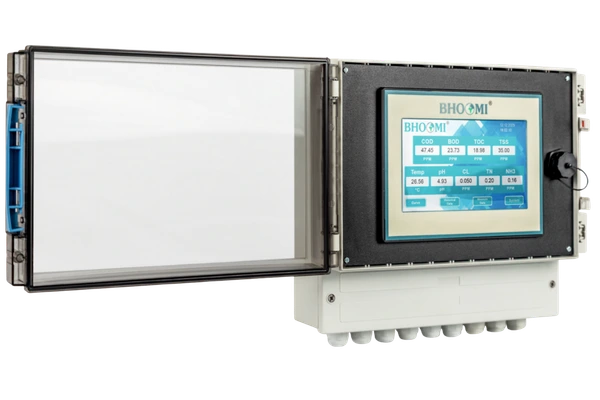

Agasthya 2021 Series Multi-parameter Water Quality Monitoring System BI 1000 is Designed to measure different water quality parameters such as COD, BOD, TOC, TSS, pH, NH3, TN, Chlorine and Oil in Water. Continuous, real-time data collection provides immediate insights into changing water conditions. All water quality sensor are digital sensor with RS485 Modbus interface. Upto 9 parameters can be measured. Here we provide with two type of measurement Insitu Type and Extractive type.

Features

Real-time water quality measurement.
All water quality sensor are digital sensor with RS485 Modbus interface.
Digital intelligent sensor can be arbitrarily combined, plug and play, and the controller can recognized automatically.
7” touch screen display, easy to operate & interface.
Data logger function, all measured data will be recorded.
Multi-parameters water quality Analyzer is equipped with USB interface; user can download report in excel format.
Upto 9 parameters can be measured

Specifications

Technical Specification

Display

: 7” touchscreen display
Sensor Input

: RS485 Modbus
Power

: 230 VAC or 24 VDC
Digital Interface

: RS485 Modbus
Data Logging

: Through USB
Sensor IP Rating

: IP68
Controller IP Protection

: IP65
Electronic Enclosure Dimension

: 320 (L) x 270 (W) x 121 (H) mm

Applications

Effluent Treatment Plant
Common Effluent Treatment Plant
Secondary water supply
Aquaculture Farming
River water quality monitoring
Environmental water discharge monitoring
Point source solution monitoring
Wastewater treatment works
Groundwater water quality monitoring etc.

Ordering Code

BI1000-C: Customer Can Select any Six Sensors

Model No	Ordering Code	Description
Sensors	1. 0.	COD/BOD/TOC/TSS None
	1. 0.	TSS None
	1. 0.	pH None
	1. 0.	TDS/Conductivity None
	1. 0.	Chlorine None
	1. 0.	Turbidity None
Power Supply	AC DC	230 VAC 24 VDC
Digital Communication	1. 0.	RS485 None
Area Classification	S H	Safe Hazardous
